Glass Swing Door with Aluminum Frame

Doors for Healthcare Facilities

Glass Doors with Aluminum Frame

FIP Porte aluminum-framed glass doors are designed for healthcare and community environments that require high standards of hygiene, safety, and durability. Ideal for hospitals, clinics, outpatient clinics, schools, public offices, and high-traffic facilities, they guarantee long-lasting durability even in the presence of humidity and frequent cleaning.

The use of tempered glass combined with the aluminum frame ensures structural solidity, ease of maintenance and a modern and bright aesthetic.

Resistance and Safety

• Door in tempered safety glass.
• High resistance to impact and wear.
• Suitable for environments subject to frequent sanitization.
• Corrosion and moisture resistant aluminum frame.

Hygiene and Ease of Cleaning

• Smooth, non-porous surface that is easy to sanitize.
• Resistance to chemicals commonly used in healthcare.
• Ideal for environments with high hygiene requirements.

Plant Safety

Upon request, provision for equipotential connections in accordance with the CEI 64-8 standard, to reduce risks arising from foreign masses in healthcare environments.

Tempered Glass Door

Doors are available with glass:

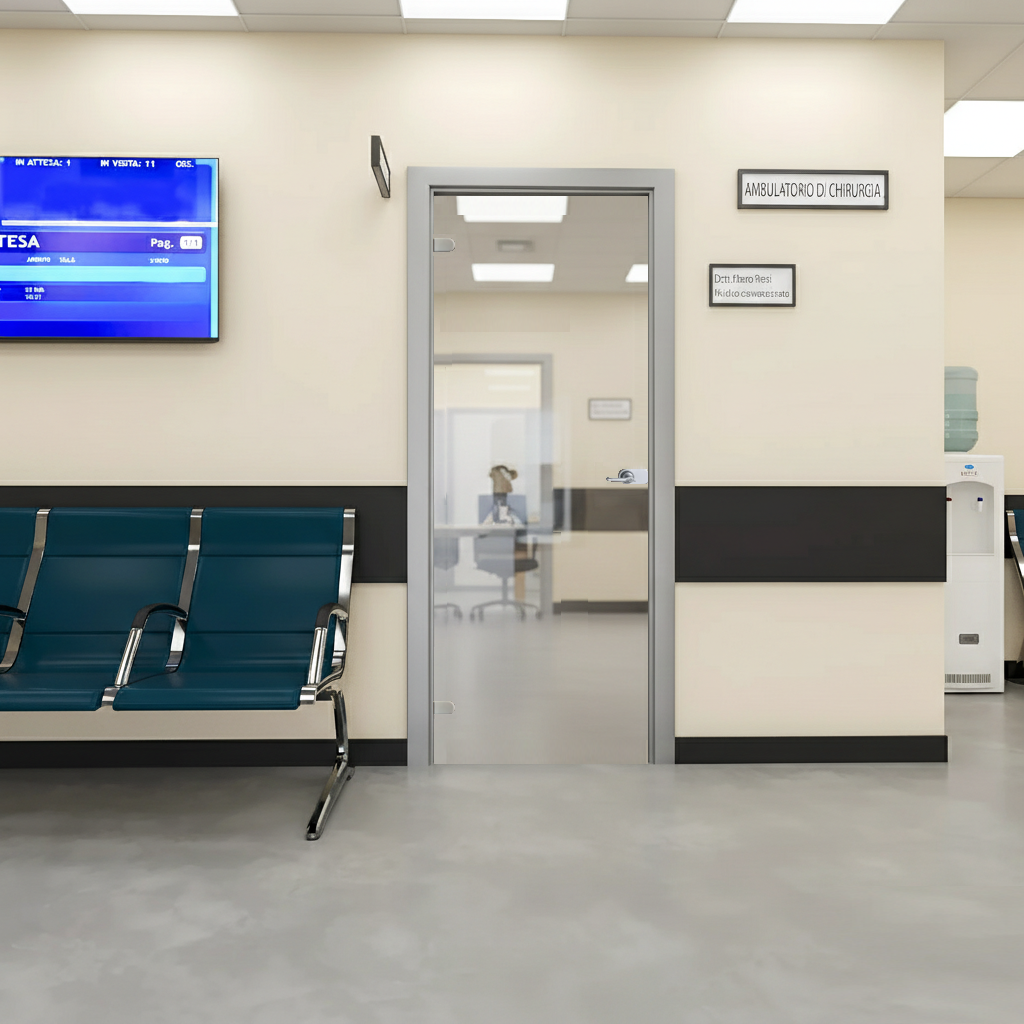

• Transparent - Ideal for maximizing natural light and creating visual continuity between rooms.

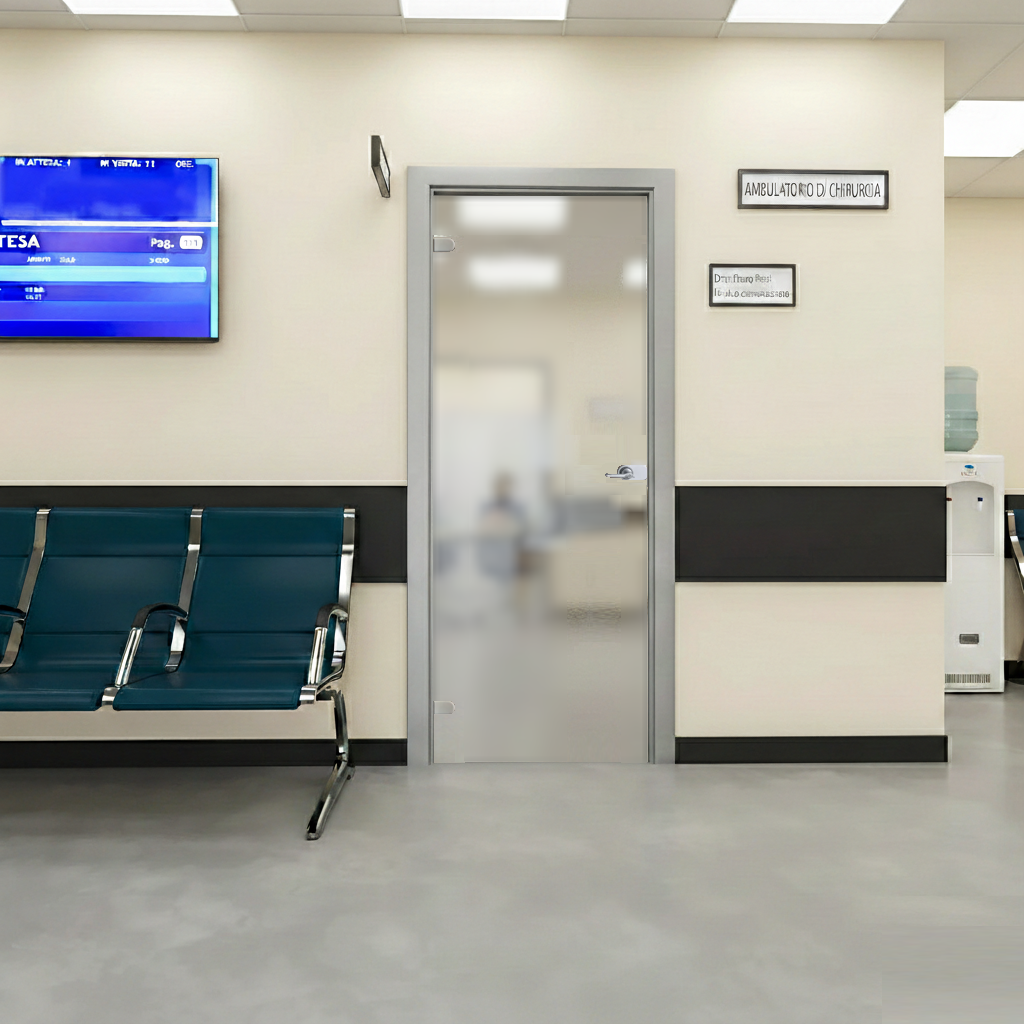

• Satin - Ensures greater privacy while allowing light to pass through, with an opaque and elegant effect.

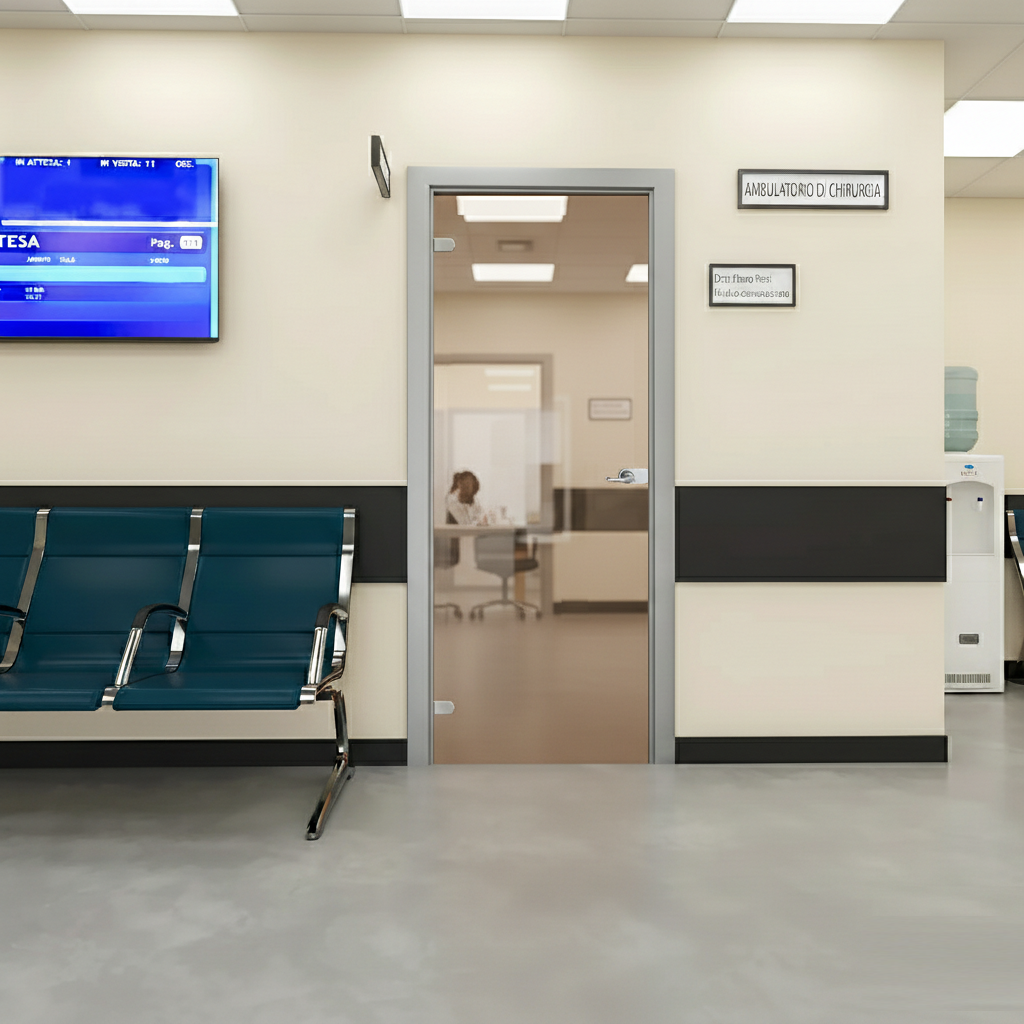

• Bronze - A warm and refined shade that enhances interiors with a classic and sophisticated aesthetic.

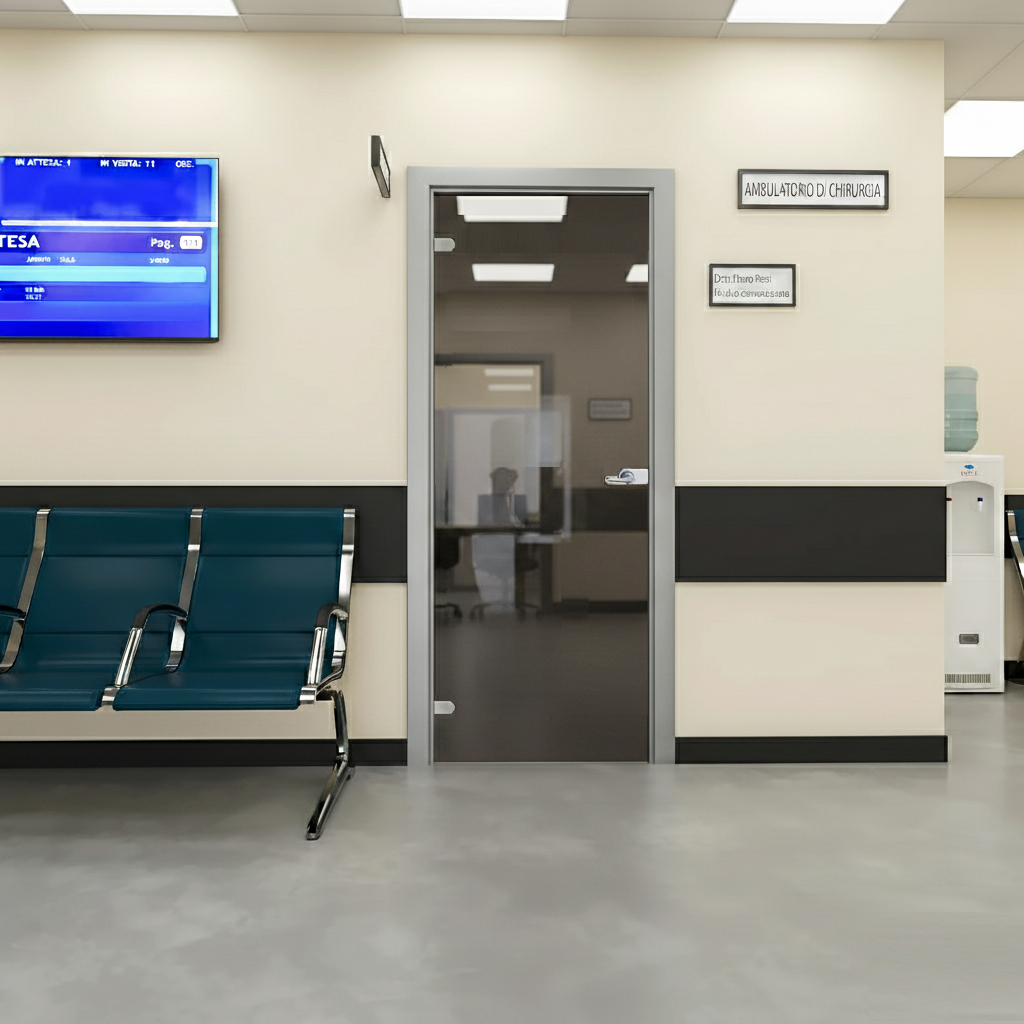

• Smoked - A modern and discreet finish, suitable for contemporary settings where privacy with a sophisticated touch is desired.

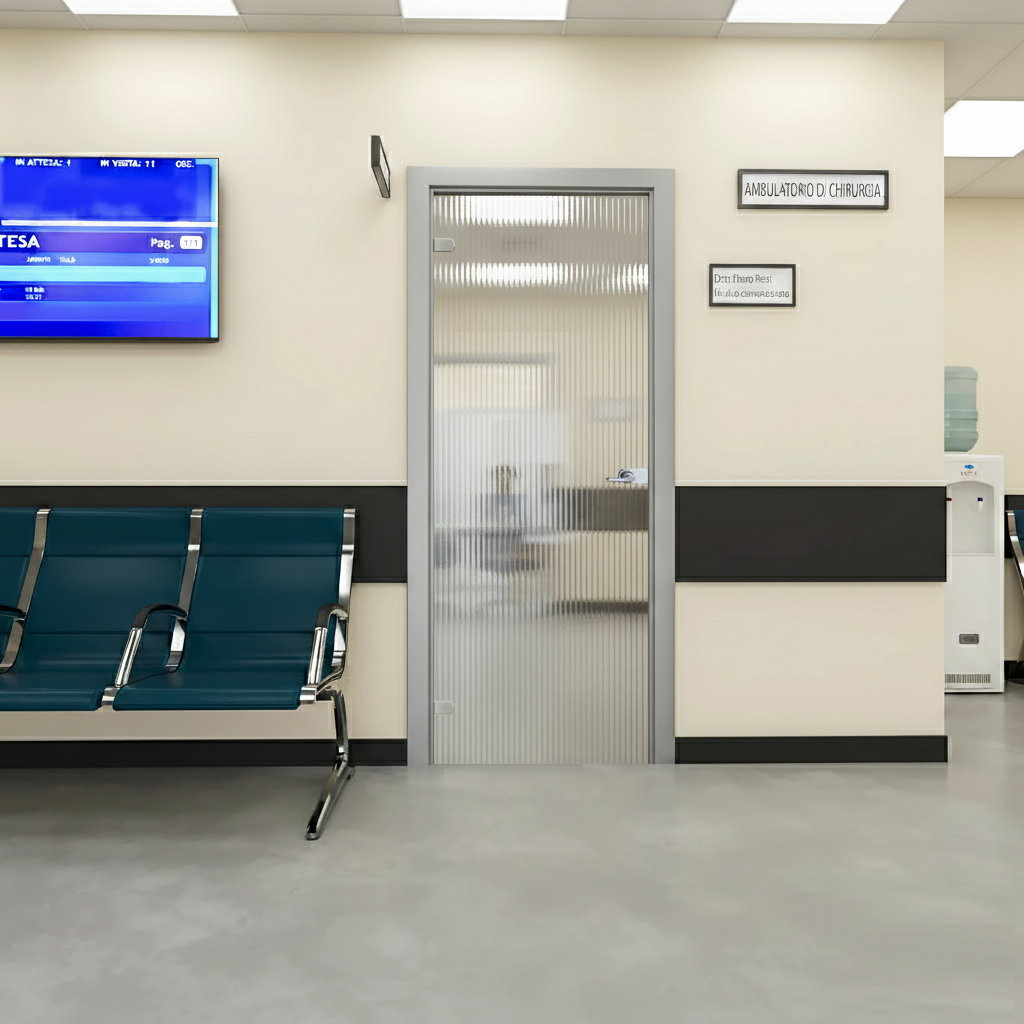

• Plissé - Delicately wavy surface with a decorative and filtering effect, ideal for environments that require originality and personality.

Aluminum Jamb and Coverings

• Rounded and embracing profile, without visible edges.
• Made with 15/10 thick extruded aluminium alloy profiles.
• Interlocking telescopic system with uprights and crosspieces assembled using aluminium brackets.

Other Features

• Hinges in chromed steel for high resistance and durability over time.
• Chrome lock in cylinder and latch version.
• Noise-reducing rubber gasket compliant with UNI 9122 standard.

Areas of Application

• Hospitals and healthcare facilities
• Outpatient clinics and polyclinics
• Schools and communities
• Public offices
• Sports facilities
• Rooms for collective use

For information on screened versions, customizations and quotes, contact FIP ​​Porte customer service via email or WhatsApp.

How to take measurements for the Hinged Door?

To properly measure interior doors, follow these steps. The measurements you need include the width, height, and thickness of the wall.

Steps:

1. Measure the Width:
1. Measure the width of the wall opening (wall hole) from one side to the other.
2. Measure the Height:
1. Measure the height of the wall opening from the floor to the top.
3. Measure the Wall Thickness:
1. Measure the thickness of the wall on both sides of the opening.

Measurement Conversion Table (cm):

Practical Example:

• Dimensions Door with Frame: 78 x 213.5 x 11-13.5 cm
• Wall Hole: 80 x 215 cm
• Door: 70 x 210 cm

Taking the correct measurements for interior doors is essential for a perfect installation. Follow these simple steps and use our conversion table to ensure your new interior doors fit perfectly in your space.

Choose our interior doors for a combination of quality, durability and ease of installation. Contact us for more information or a personalized quote!

Description of HPL and its Adaptability to Humid Environments

What is HPL?

HPL, or High-Pressure Laminate, is a material composed of layers of kraft paper impregnated with thermosetting resins, compacted and bonded together through the combined action of heat and high pressure. This process creates a very dense and resistant material, with a decorative surface that can be customized in various colors and textures.

Main Features of HPL:

• High Resistance : HPL is extremely resistant to wear, impacts and scratches, making it ideal for high-traffic environments.
• Waterproof : Thanks to its compact structure and non-porous surface, HPL is highly resistant to water and humidity.
• Ease of Cleaning : The HPL surface is easy to clean and does not require intensive maintenance, making it ideal for environments where hygiene is a priority.
• Chemical Resistance : HPL resists many chemicals well, including detergents and disinfectants, without deterioration.
• Safety : HPL can be produced with fire retardant characteristics, ensuring greater safety in the event of a fire.

Why is HPL Suitable for Humid Environments?

1. Water and Humidity Resistance : HPL does not absorb water thanks to its non-porous surface and compact structure. This makes it ideal for humid environments such as bathrooms, swimming pools, gyms and kitchens, where exposure to humidity is constant.

2. Durability and Longevity : Moisture resistance prevents deterioration and deformation of the material, ensuring long life even under heavy use.

3. Hygiene and Ease of Maintenance : The smooth surface of HPL is easy to clean and sanitize, essential in environments where hygiene is crucial, such as hospitals, clinics and healthcare facilities.

4. Chemical Resistance : HPL resists detergents and disinfectants commonly used for cleaning in healthcare and industrial environments, maintaining its aesthetic and functional properties.

5. Aesthetics and Versatility : Available in a wide range of colours and finishes, HPL can be used to create aesthetically pleasing environments without compromising on technical performance.

HPL is therefore the ideal choice for those looking for a robust, hygienic and moisture-resistant material, perfect for a wide variety of applications in public and private environments.
